Permanent Customized Arc Shaped Magnets N42SH N50H N52M For Motor / Generator

Basic Information
Place of Origin: Nanjing, China
Brand Name: Huajin Magnet
Certification: SGS, ROHS
Model Number: HJ-140
Minimum Order Quantity: 100 pcs
Price: usd 0.05~0.20 piece
Packaging Details: Carton/ Wooden Box
Delivery Time: 7-9 days
Payment Terms: Western Union, T/T, L/C, PayPal
Supply Ability: 100000 pcs/month
Detail Information
Composition: NdFeB Magnet Dimension: Customized
Type: Permanent & Strong Grade: N35-N52, N35M-N50M, N35H-N48H, N33SH-N45SH, N30UH-N35UH, N30EH-N35EH
Coating: Zinc, Nickel Working Temp.: <80℃ / 80-200℃
Tolerance: +/-0.05mm MOQ: 100PCS
Sample: Available HS Code: 8505111000
Lead Time: 7-9 Days

Product Description

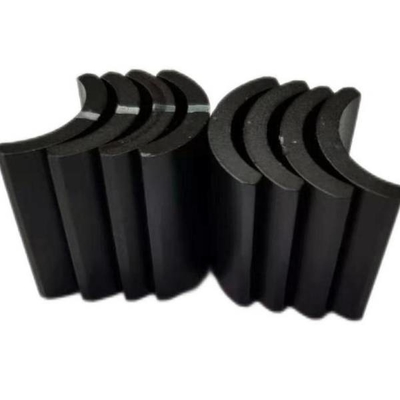

Permanent Customized Arc Magnet N42SH N50H N52M For Motor/ Generator



Product Description:

Item Arc Magnet
Composition Neodymium Magnet
Application Voice-coil Motor(VCM), MRI, Generator, Car, Speaker, Computer
Working Temperature <80℃  / 80ºC~200ºC
Coating Zinc, Color Zinc, Nickel etc
Grade N35-N52, 38M-48M, 35H-48H, 33SH-44SH, 30UH-35UH
Dimension Customized size
Magnetism Direction Through thickness(Axially)+Radially
Type Strong&Permanent
Performance Permanent, Strong, Rust-proof, Anti-corrosion
Trade Term EXW, FOB, CIF, C&F ect.
Payment Term TT, PayPal, Western Union ect.


Permanent Customized Arc Shaped Magnets N42SH N50H N52M For Motor / GeneratorPermanent Customized Arc Shaped Magnets N42SH N50H N52M For Motor / Generator


Grade Remanence Coercivity Force Intrinsic Coercive Force Max. Energy Product Working Temp.
  Br Hcb Hcj (BH)max
mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 955 ≥ 12 263-287 33-36 80 ° C
N38 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 955 ≥ 12 287-310 36-39 80 ° C
N40 1250-1280 12.5-12.8 ≥ 907 ≥ 11.4 ≥ 955 ≥ 12 302-326 38-41 80 ° C
N42 1280-1320 12.8-13.2 ≥ 915 ≥ 11.5 ≥ 955 ≥ 12 318-342 40-43 80 ° C
N45 1320-1380 13.2-13.8 ≥ 923 ≥ 11.6 ≥ 955 ≥ 12 342-366 43-46 80 ° C
N48 1380-1420 13.8-14.2 ≥ 923 ≥ 11.6 ≥ 876 ≥ 12 366-390 46-49 80 ° C
N50 1400-1450 14.0-14.5 ≥ 796 ≥ 10.0 ≥ 876 ≥ 11 382-406 48-51 60 ° C
N52 1430-1480 14.3-14.8 ≥ 796 ≥ 10.0 ≥ 876 ≥ 11 398-422 50-53 60 ° C
35M 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 1114 ≥ 14 263-287 33-36 100 ° C
38M 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 1114 ≥ 14 287-310 36-39 100 ° C
40M 1250-1280 12.5-12.8 ≥ 923 ≥ 11.6 ≥ 1114 ≥ 14 302-326 38-41 100 ° C
42M 1280-1320 12.8-13.2 ≥ 955 ≥ 12.0 ≥ 1114 ≥ 14 318-342 40-43 100 ° C
45M 1320-1380 13.2-13.8 ≥ 995 ≥ 12.5 ≥ 1114 ≥ 14 342-366 43-46 100 ° C
48M 1360-1430 13.6-14.3 ≥ 1027 ≥ 12.9 ≥ 1114 ≥ 14 366-390 46-49 100 ° C
50M 1400-1450 14.0-14.5 ≥ 1033 ≥ 13.0 ≥ 1114 ≥ 14 382-406 48-51 100 ° C
35H 1170-1220 11.7-12.2 ≥ 868 ≥ 10.9 ≥ 1353 ≥ 17 263-287 33-36 120 ° C
38H 1220-1250 12.2-12.5 ≥ 899 ≥ 11.3 ≥ 1353 ≥ 17 287-310 36-39 120 ° C
40H 1250-1280 12.5-12.8 ≥ 923 ≥ 11.6 ≥ 1353 ≥ 17 302-326 38-41 120 ° C
42H 1280-1320 12.8-13.2 ≥ 955 ≥ 12.0 ≥ 1353 ≥ 17 318-342 40-43 120 ° C
45H 1300-1360 13-13.6 ≥ 963 ≥ 12.1 ≥ 1353 ≥ 17 326-358 43-46 120 ° C
48H 1370-1430 13.7-14.3 ≥ 995 ≥ 12.5 ≥ 1353 ≥ 17 366-390 46-49 120 ° C
33SH 1130-1170 11.3-11.7 ≥ 844 ≥ 10.6 ≥ 1592 ≥ 20 247-271 31-34 150 ° C
35SH 1170-1220 11.7-12.2 ≥ 876 ≥ 11.0 ≥ 1592 ≥ 20 263-287 33-36 150 ° C
38SH 1220-1250 12.2-12.5 ≥ 907 ≥ 11.4 ≥ 1592 ≥ 20 287-310 36-39 150 ° C
40SH 1240-1280 12.5-12.8 ≥ 939 ≥ 11.8 ≥ 1592 ≥ 20 302-326 38-41 150 ° C
42SH 1280-1320 12.8-13.2 ≥ 987 ≥ 12.4 ≥ 1592 ≥ 20 318-342 40-43 150 ° C
45SH 1320-1380 13.2-13.8 ≥ 1003 ≥ 12.6 ≥ 1592 ≥ 20 342-366 43-46 150 ° C
30UH 1080-1130 10.8-11.3 ≥ 812 ≥ 10.2 ≥ 1990 ≥ 25 223-247 28-31 180 ° C
33UH 1130-1170 11.3-11.7 ≥ 852 ≥ 10.7 ≥ 1990 ≥ 25 247-271 31-34 180 ° C
35UH 1180-1220 11.8-12.2 ≥ 860 ≥ 10.8 ≥ 1990 ≥ 25 263-287 33-36 180 ° C
38UH 1220-1250 12.2-12.5 ≥ 876 ≥ 11.0 ≥ 1990 ≥ 25 287-310 36-39 180 ° C
40UH 1240-1280 12.5-12.8 ≥ 899 ≥ 11.3 ≥ 1990 ≥ 25 302-326 38-41 180 ° C



Platings/Coatings:

Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet will rust. To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated. There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes our magnets much more durable than the more common single nickel plated magnets. Some other options for coating are zinc, tin, copper, epoxy, silver and gold. Our gold plated magnets are actually quadruple plated with nickel, copper, nickel and a top coating of gold.



Machining:

Neodymium material is brittle and prone to chipping and cracking, so it does not machine well by conventional methods. Machining the magnets will generate heat, which if not carefully controlled, can demagnetize the magnet or even ignite the material which is toxic when burned. It is recommended that magnets not be machined.


Our Company

We are a small business that has been a long time in the making. We have worked for both large and small businesses over the years, where we have learned a lot about business - both what to do - and what not to do. We have found that good business boils down to providing excellent customer service. Without you, the customer, we have no business, so we will do everything in our power to make sure that you are satisfied with your order and service from Nanjing Huajin Magnet.

Permanent Customized Arc Shaped Magnets N42SH N50H N52M For Motor / Generator



Payment Term:
T/T, L/C, Western Union, PayPal.

Package & Shipment:

1. By Express(DHL, FedEx, TNT, UPS ect): Door to door, Short Delivery time, 3-5 days.
2. By Air: Short Delivery Time, 3-7 days.
3. By Sea: Cheap Shipping Cost, 7-35 days.
Package: Magnetic Isolation Package
Carton: 36*27*15CM



Permanent Customized Arc Shaped Magnets N42SH N50H N52M For Motor / Generator

FAQ:

1. Q: Could you provide me the shortest lead time?
A: We have materials in our stock,if you really need, you can tell us and we will try our best to
satisfy you.

2. Q: What is your MOQ?
A: 1-10-100-500-1000-5000-10000-200000 pcs etc. depend different size ,item, design and process.
MIN and SMALL quantity accept accordingly.

3. Q: How to pay you?
A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.
Western Union cash - for small order or samples order.
Other payment: L/C,D/A,D/P,MoneyGram,Paypal or Escrow.
Different areas may exist some differences.

4. Q: Could I pay a visit to your factory?
A: Yes, of course, if you need, we will help you visit our factory, everything will be well arranged.



Please feel free to contact me for any questions and requiries.
