0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating

Certification
China Qingdao Magnet Magnetic Material Co., Ltd. certification
China Qingdao Magnet Magnetic Material Co., Ltd. certification
I'm Online Chat Now

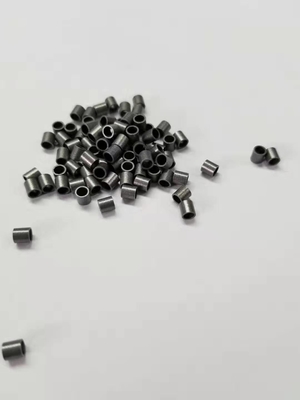

0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating

0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating
0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating 0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating 0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating 0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating 0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating

Large Image :  0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating

Product Details:
Place of Origin: Shandong, China
Brand Name: MGT
Certification: ISO9001:2015
Model Number: MGT-Compression Bonded NdFeB
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: USD 0.1-15 PC
Packaging Details: Iron Sheet Shielding Carton, Wooden Carton, Customized Packing
Delivery Time: 15-35 Days
Payment Terms: T/T
Supply Ability: 50000PCS Per Day

0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating

Description
Material: Compression Bonded Neodymium Iron Boron(NdFeB) Magnet, Molding Or Pressing Rare Ea Type: Neodymium Iron Boron Magnet,NdFeB Magnet, Rare Earth Permanent Magnetic Material
Application: Industrial Magnet, Motor, Automotive, Customized Grade: MGT 6,7,8,9,10,11
Size: 0.5mm-100mm, Customized Magnetic Direction: Axial, Radial, Mulipole, Skewed Angle Magnetized, Customized
Environment: RoHs, Reach, SGS, MSDS Coating: Epoxy, Parylene, Everlube, Customized
Color: Black, Grey, Customized
High Light:

Isotropic Bonded NdFeB Magnets 0.5mm

,

0.5mm Isotropic Bonded NdFeB Magnets

,

100mm NdFeB Magnets Parylene Coating

Isotropic Bonded Neodymium Iron Boron(NdFeB) Magnet, Molding Permanent Magnet





Production processes of compression bonded NdFeB magnet:



Isotropic Material

Magnetic powder&Couple Agent→Binding→Materials→Pressing/Forming

(Magnetic filed free)→Curing→Surface Treatment→Magnetizing→Inspection→Packing→Delivery







Anisotropic Material

Magnetic powder&Couple Agent→Binding→Materials→Pressing/Forming

(With Magnetic filed)→Demagnetizing→Curing→Surface Treatment→Magnetizing→Inspection→Packing→Delivery



Features



1.Max. Working temp.160℃;

2.Molding processed, economical and full automated manufacturing;

3. Reliable corrosion resistance, various coatings (Epoxy, parylene, Everlube, paint, etc.) ensure corrosion resistance and product appearance;

4. Magnetized methods variously, multipole axially, radially with skew angle, Halbach Array. Make motors performances more efficient, less noise at high speed rotation.





Magnetic Perfomance Parameter

0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating 0



Isotropic Compression Bonded NdFeB Remanence Intrinsic Coercivity Coercivity Maximum Magnetic
Energy Product
Working
Temp.
Advantages
Br Hcj Hcb BH(max) Temp 1,Various shapes(ring,arc segment,strange shaped);
2,Various magnetic orientation, low eddy loss;
3,Rotate stably,low noise,save electricity.
kGs mT kOe kA/m kOe kA/m MGOe kJ/m3
5.5-7.6 550-760 6-15 470-1200 3.5-6.5 278-520 5-11.5 40-92 80 ~ 150

Anisotropic
Compression Bonded NdFeB
Remanence Intrinsic Coercivity Coercivity Maximum Magnetic
Energy Product
Working
Temp.
Advantages
Br Hcj Hcb BH(max) Temp 1,Higer magnetic energy, compares to Isotropic compression bonded NdFeB;
2,Process to ring, low eddy loss;
3,Rotate stably at high RPM, low noise.
kGs mT kOe kA/m kOe kA/m MGOe kJ/m3
8.5-10.6 850-1060 12-17 950-1350 6.7-8.2 530-650 13-21 102-170 80 ~ 150









0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating 1

0.5mm-100mm Isotropic Bonded NdFeB Magnets Parylene Coating 2
