MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder

MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder
MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder

Large Image :  MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder

Product Details:
Place of Origin: China
Brand Name: MGT
Certification: ISO9001:2015
Model Number: MGT-Magnetic Powder
Payment & Shipping Terms:
Minimum Order Quantity: 10KG
Price: From60USD/KG To 95USD/KG

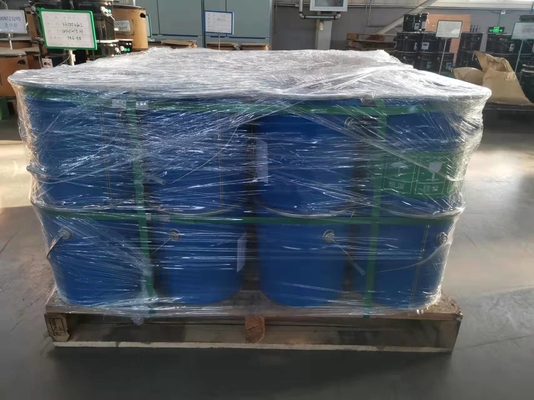

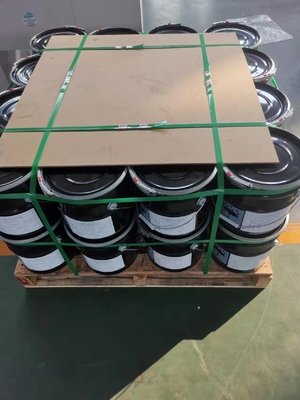

Packaging Details: 20-25KG/Drums 1 Ton per Pallet
Delivery Time: 1-2 Weeks
Payment Terms: T/T
Supply Ability: 500KG per 1 Day

MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder

Description
Material: Neodymium And Iron And Boron Color: Silver And Gray
Particle Size: 80-200um Br: 6.5-9.2kGS
Hcb: 4-7.2kGs Hcj: 5-13kOe
BH: 7-16.5MGOe Working Temperature: -45 °c——150 °c
High Light:

Gray Rare Earth Magnetic Powder

,

MGT Rare Earth Magnetic Powder

,

Bonded Anisotropic NdFeB Powder

Bonded Anisotropic NdFeB Powder  Bonded NdFeB Powder Neo Isotropic Powder



Process flow

  • The alloy of molten NdFeB is sprayed onto a high-speed rotating cooling roll at a certain speed and instantly solidifies to form a thin strip with a thickness of 0.02-0.05mm. During the rapid cooling process, a Nd2Fe14B structure is formed, and finally the thin strip is broken and made into powder
  • MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder 0

Prduct List



Production List
Series 0806 10-8 1208 1309 1309A 1412 1507 1509 1510 1610 1609D
magnetic Powder
VSM
Br 7.00~7.20 7.60~7.75 8.10~8.30 8.40~8.55 8.5-8.7 8.45-8.65 9.2-9.45 8.85-9.1 8.85-9.1 9.05-9.2 8.85-9.2
kGs
Hcj 5.00~7.50 7.80~8.80 8.00~8.80 9.00~9.80 9-9.8 12-12.7 6.8-7.8 9.2-9.8 10-10.8 9.3-10.1 9.2-9.8
kOe
Hcb 4.30-5.00 5.20~5.60 5.80~6.30 6.20~6.80 6.2-6.8 6.7-7.2 5.5-6 6.4-6.9 6.4-6.9 6.7-7.2 6.7-7.2
kOe
(BH)max 8.80-9.30 11.70~12.10 13.00~13.80 14.20~14.80 14.2-15.1 14.4-15.2 15-16 15.5-16.3 15.5-16.3 16.5-17.5 16.5-17.5
MGOe
magnet
D10
Br 5.50~5.90 6.00~6.15 6.35~6.50 6.60~6.80 6.6-6.9 6.7-6.8 7.3-7.5 6.9-7 6.9-7 7.05-7.15 7.05-7.15
kGs
Hcj 5.00~7.50 7.80~8.80 8.00~8.80 9.00~9.80 9-9.8 12-12.7 6.8-7.8 9.2-9.8 10-10.8 9.3-10.1 9.2-9.8
kOe
Hcb 3.80~4.40 4.80~5.10 5.10~5.40 5.40~5.80 5.4-5.8 5.7-5.9 5.3-5.5 5.7-6 5.7-6 5.7-6.2 5.8-6.2
kOe
(BH)max 6.00~6.40 7.40~7.70 8.30~8.70 8.90~9.30 9-9.4 9.6-9.8 10.3-10.5 9.9-10.3 9.9-10.3 10.2-10.6 10.2-10.6
MGOe


MGT Gray Rare Earth Magnetic Powder Bonded Anisotropic NdFeB Powder 1

Application

  • Bonded NdFeB magnetic powder is mainly used in the manufacture of bonded magnets. Bonded magnetic powder can be pressed by molding, injection molded by injection molding machine, and rolled by calender. It is an important raw material for manufacturing micro-motor magnets and sensor magnets.

Features:

  • Different adhesives can be selected according to the use environment.
  • It is used for the manufacture of magnets with precise dimensions, light weight, thin walls and complex shapes.
  • Bonded magnetism is used for stable magnetic properties, and can be used for a long time at -45 degrees to 150 degrees, with a demagnetization rate of 2-3%.
  • Can be bonded together with other metal parts.
  •
