Product Details:
|
Material: | Sintered NdFeB Magnet With Iron Case | Grade: | N35,N38,N40,N45,N50 |
---|---|---|---|
Magnetic Force: | 100KG-300KGS | Color: | Silver, Red, Black Other Customized Colors |
High Light: | 270KGS 600 Lb Fishing Magnet,NdFeB N35 5000 lb fishing magnet,Sintered NdFeB 2000 lb fishing magnet |

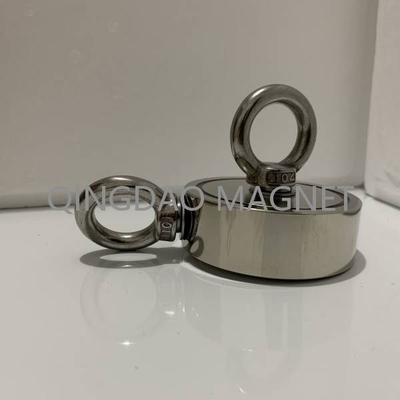

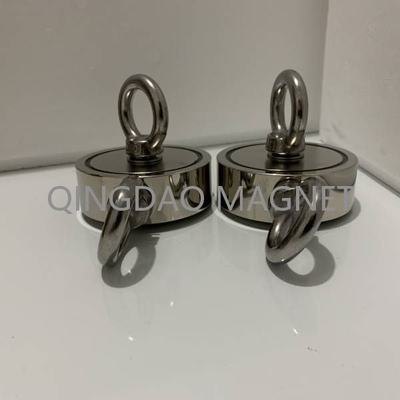

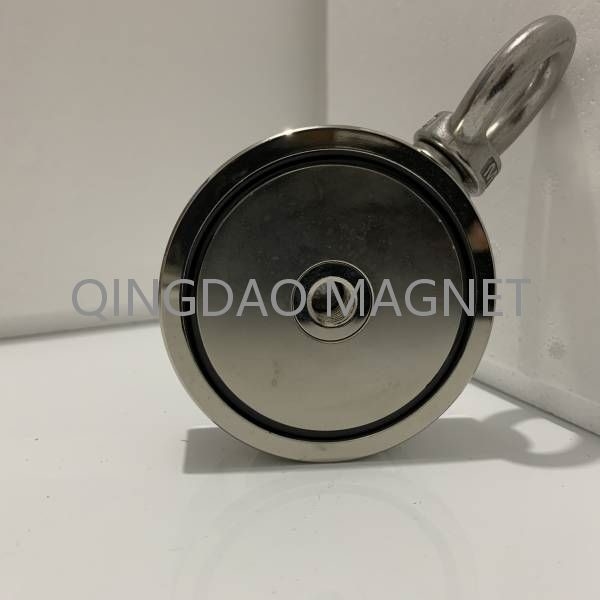

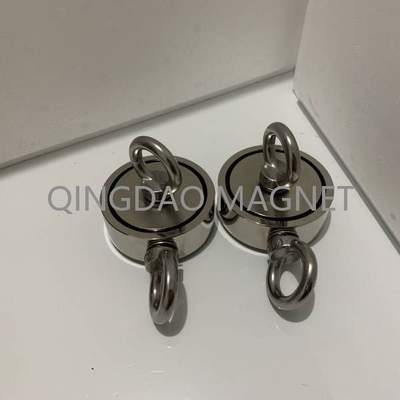

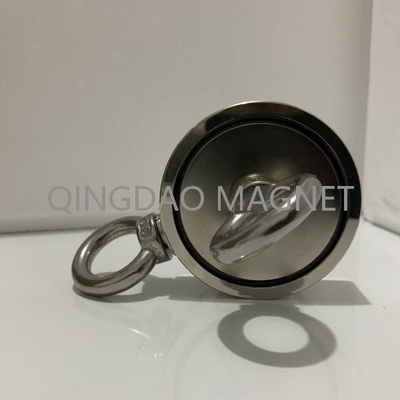

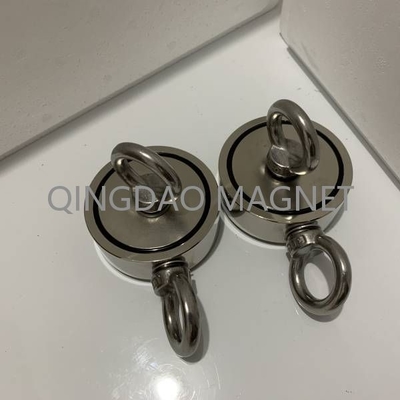

Fishing Magnet Strong Magnetic Force
Neodymium Fishing Magnet, With Stainless Hook and Nickle Coating. With Various of Magnetic Force, The Strongest Magnetic Force >3000KGs
-Fishing magnet is a magnetic component composed of a ferromagnetic stainless steel shell with a eyelet hook and a sintered Neodymium(NdFeB) magnetic material. This magntic assmebly is commonly used sintered Neodymium magnets by N series with a maximum working temperature of 80°C. The price of this series of magnets is relatively cheap compared to magnets with high coercivity. In other words, the cost is more economical, and magnets with high remanence and high magnetic flux density can be selected according to the magnetic force or magnetic strength requirements; the maximum suction force can exceed 3000kgs;

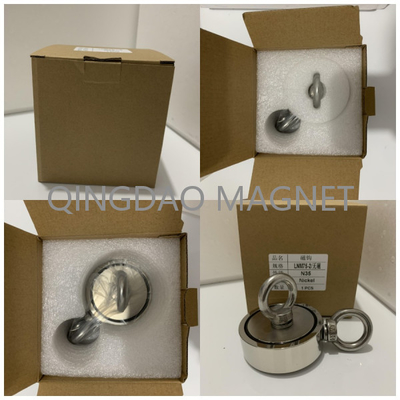

- Fishing magnet with eyelet hook configurable rope and gloves sold as a set;
-Due to the strong magnetic field, keep away from people with pacemakers and people with ferromagnetic steel plates installed in their bodies; do not wear personal items that will be affected by magnetism, such as mechanical watches;
Dimension for Fishing Magnets
Fishing Magnet | |||||||||
Model | D (mm) |
d (mm) |
d1 (mm) |
H (mm) |
h (mm) |
M | Part Weight (g) |
Breakaway (kg) |
Coating |
MGTNJ20 | 20 | 10 | 19 | 27 | 7 | M4 | 27 | 11 | Ni,Zn,Epoxy or Customized |
MGTNJ25 | 25 | 12 | 22.5 | 32 | 8 | M5 | 44 | 22 | Ni,Zn,Epoxy or Customized |
MGTNJ32 | 32 | 12 | 22.5 | 32 | 8 | M5 | 59 | 32 | Ni,Zn,Epoxy or Customized |
MGTNJ36 | 36 | 15.5 | 27 | 38.5 | 8 | M6 | 71 | 43 | Ni,Zn,Epoxy or Customized |
MGTNJ42 | 42 | 15.5 | 27 | 39.1 | 8.6 | M6 | 98 | 65 | Ni,Zn,Epoxy or Customized |
MGTNJ48 | 48 | 19.5 | 34.5 | 47 | 11 | M8 | 197 | 75 | Ni,Zn,Epoxy or Customized |
MGTNJ55 | 55 | 19.5 | 34.5 | 48 | 12 | M8 | 278 | 95 | Ni,Zn,Epoxy or Customized |
MGTNJ60 | 60 | 19.5 | 34.5 | 51 | 15 | M8 | 330 | 160 | Ni,Zn,Epoxy or Customized |
MGTNJ70 | 70 | 24.5 | 41 | 60.5 | 17 | M10 | 608 | 200 | Ni,Zn,Epoxy or Customized |
MGTNJ75 | 75 | 24.5 | 41 | 61.5 | 18 | M10 | 632 | 250 | Ni,Zn,Epoxy or Customized |
MGTNJ80 | 80 | 24.5 | 41 | 61.5 | 18 | M10 | 821 | 280 | Ni,Zn,Epoxy or Customized |
MGTNJ90 | 90 | 24.5 | 41 | 61.5 | 18 | M10 | 899 | 360 | Ni,Zn,Epoxy or Customized |
MGTNJ120 | 120 | 27.5 | 50 | 68.5 | 18 | M12 | 1510 | 480 | Ni,Zn,Epoxy or Customized |
Note: Dimension can be customized, contact us for more details and information. |
Fishing Magnet | |||||||||
Model | D (mm) |
d (mm) |
d1 (mm) |
H (mm) |
h (mm) |
M | Part Weight (g) |
Breakaway (kg) |
Coating |
MGTNM48 | 48 | 10 | 53 | 19.5 | 34.5 | M8 | 180 | 80 | Ni,Zn,Epoxy or Customized |
MGTNM60 | 60 | 12 | 55 | 19.5 | 34.5 | M8 | 301 | 140 | Ni,Zn,Epoxy or Customized |
MGTNM67 | 67 | 12 | 69 | 25 | 41.5 | M10 | 395 | 170 | Ni,Zn,Epoxy or Customized |
MGTNM75 | 75 | 15 | 69 | 25 | 41.5 | M10 | 575 | 250 | Ni,Zn,Epoxy or Customized |
MGTNM94 | 94 | 18 | 69 | 25 | 41.5 | M10 | 1022 | 300 | Ni,Zn,Epoxy or Customized |
MGTNM116 | 116 | 20 | 78 | 29 | 47 | M12 | 1710 | 400 | Ni,Zn,Epoxy or Customized |
MGTNM136 | 136 | 23 | 78 | 29 | 47 | M12 | 2655 | 600 | Ni,Zn,Epoxy or Customized |
MGTNM160 | 160 | 32 | 118 | 40 | 70 | M20 | 5394 | 1000 | Ni,Zn,Epoxy or Customized |
MGTNM200 | 200 | 37 | 144 | 50 | 88 | M24 | 8867 | 1500 | Ni,Zn,Epoxy or Customized |
MGTNM250 | 250 | 40 | 169 | 60 | 105 | M30 | 16481 | 2000 | Ni,Zn,Epoxy or Customized |
MGTNM320 | 320 | 50 | 219 | 70 | 120 | M36 | 32460 | 3000 | Ni,Zn,Epoxy or Customized |
Note: Dimension can be customized, contact us for more details and information. |
Note
We have several types of existing standard toolings or moulds for our fishing magnets, can also do customized part, contact us freely if you need any magnetic parts.
