1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly

Certification
China Qingdao Magnet Magnetic Material Co., Ltd. certification
China Qingdao Magnet Magnetic Material Co., Ltd. certification
I'm Online Chat Now

1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly

1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly
1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly 1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly 1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly 1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly 1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly

Large Image :  1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly

Product Details:
Place of Origin: Shandong, China
Brand Name: MGT
Model Number: MGT-Magnetic Assembly-Hook 25
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: USD 0.8-3.9 PER PC
Packaging Details: Iron Sheet Shielding Carton, Wooden Carton, Customized Packing
Delivery Time: 15-35 Days
Payment Terms: T/T
Supply Ability: 5000PCS Per Day

1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly

Description
Material: Sintered NdFeB Magnet With Iron Case Grade: N35,Other Customized
Magnetic Force: 2KGS To 500KGS Color: Silver, Red, Black Other Customized Colors
Magnetic Materials: Neodymium, Ferrite, Rubber Magnets
High Light:

OEM 250 lb pull neodymium magnet

,

NdFeB 500 lb neodymium magnet

,

NdFeB 1000 lb neodymium magnet

Hook Magnet



Basic Information:



- Hook magnet is a type of magnetic assembly composed of magnetic material and other material shells (iron, stainless steel, plastic parts, rubber-coated) with hooks (fixed or rotatable);


- Different magnetic materials can be selected according to the magnetic strength and application requirements, including sintered Neodymium(NdFeB), Samarium Cobalt, AlNiCo, sintered ferrite, rubber magnet, etc.;


- The shell is mainly made of ferromagnetic material, which can be magnetized by the magnetic material to form an overall magnetic circuit, improve the magnetic force, utilize the magnetic performance efficiently;



- For the high-humidity environment with strict anti-corrosion requirements, special coating, injection molding, sealing and other processes can be used to improve the anti-corrosion characteristics of the parts;


- Hook magnet is widely used in our daily life, it can be used to hang towels, clothes, bags, keys, knives, etc.; it can be used to hang bird cages, whiteboards, furniture, etc.; with rotatable Carabiner, can be used in mountaineering facility; magnetized in pairs when needed; Special shape, logo, and appearance of different colors can be customized according to customer preferences.





Features

  • Magnetic Materials:Neodymium, Ferrite, SmCo, AlNiCo or Rubber Magnets
  • Hooks: Fixed Hook or Swivel Hook
  • Coating: Nickle, Zinc, Epoxy, Powder Coating or Other Customized
  • The Strongest Magnetic Force>480KGs
  • Hundreds of Types, Fulfill Various of Applications' Requirment







Dimension for Hook Magnet



1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly 0
                     Hook Magnet
Model D
(mm)
d
(mm)
M h
(mm)
h1
(mm)
H
(mm)
Part Weight
(g)
Breakaway
(kg)
Coating
MGTNE10 10 6 M3 5 12.5 33 6 2 Ni,Zn,Epoxy
or Customized
MGTNE12 12 6 M3 5 12.5 33 7 4 Ni,Zn,Epoxy
or Customized
MGTNE16 16 6.5 M4 7 12.6 35 12 8 Ni,Zn,Epoxy
or Customized
MGTNE20 20 6.5 M4 7 14 36 2`1 12 Ni,Zn,Epoxy
or Customized
MGTNE25 25 7.5 M5 8 17 45 37 25 Ni,Zn,Epoxy
or Customized
MGTNE32 32 10 M6 8 18 48 61 34 Ni,Zn,Epoxy
or Customized
MGTNE36 36 10 M6 8 18 48 69 50 Ni,Zn,Epoxy
or Customized
MGTNE42 42 10 M6 8,6 18 48 101 72 Ni,Zn,Epoxy
or Customized
MGTNE48 48 12 M8 11 24 61 182 81 Ni,Zn,Epoxy
or Customized
MGTNE55 55 12 M8 12 28 64.5 252 95 Ni,Zn,Epoxy
or Customized
MGTNE60 60 12 M8 15 28 64.5 362 160 Ni,Zn,Epoxy
or Customized
MGTNE70 70 17 M10 17 34 80 566 200 Ni,Zn,Epoxy
or Customized
MGTNE75 75 17 M10 18 35 81 681 270 Ni,Zn,Epoxy
or Customized
MGTNE80 80 17 M10 18 35 81 761 300 Ni,Zn,Epoxy
or Customized
Note: Dimension can be customized, contact us for more details and information.

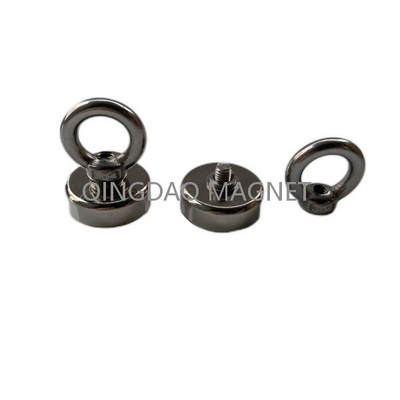

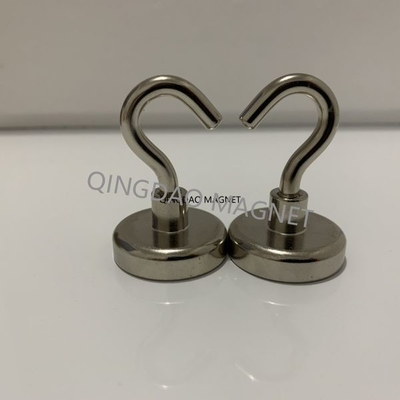

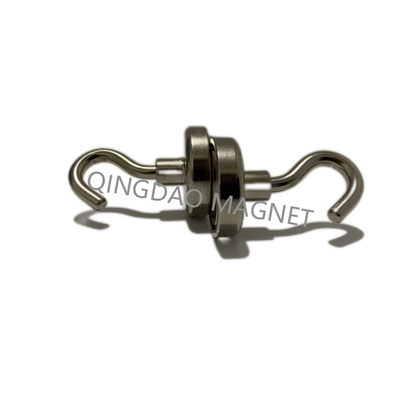

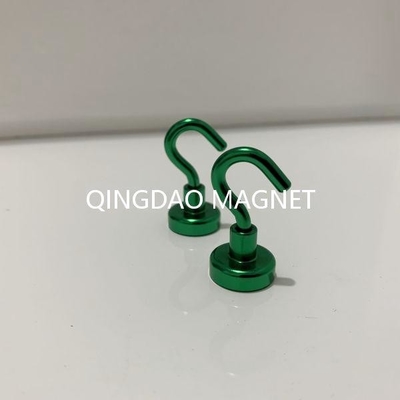

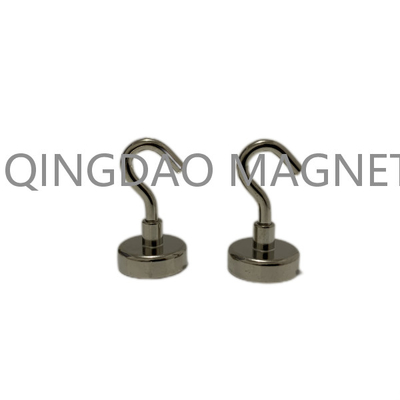

Pictures of Hook Magnets



1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly 1



1000 Lb 500 Lb 250 Lb Pull Neodymium Magnet Permanent Magnet Assembly 2

Note

We have various types of pot magnet by our existing tooling and moulds, can also provide parts by customized, contact us freely if you have any inquiry.
